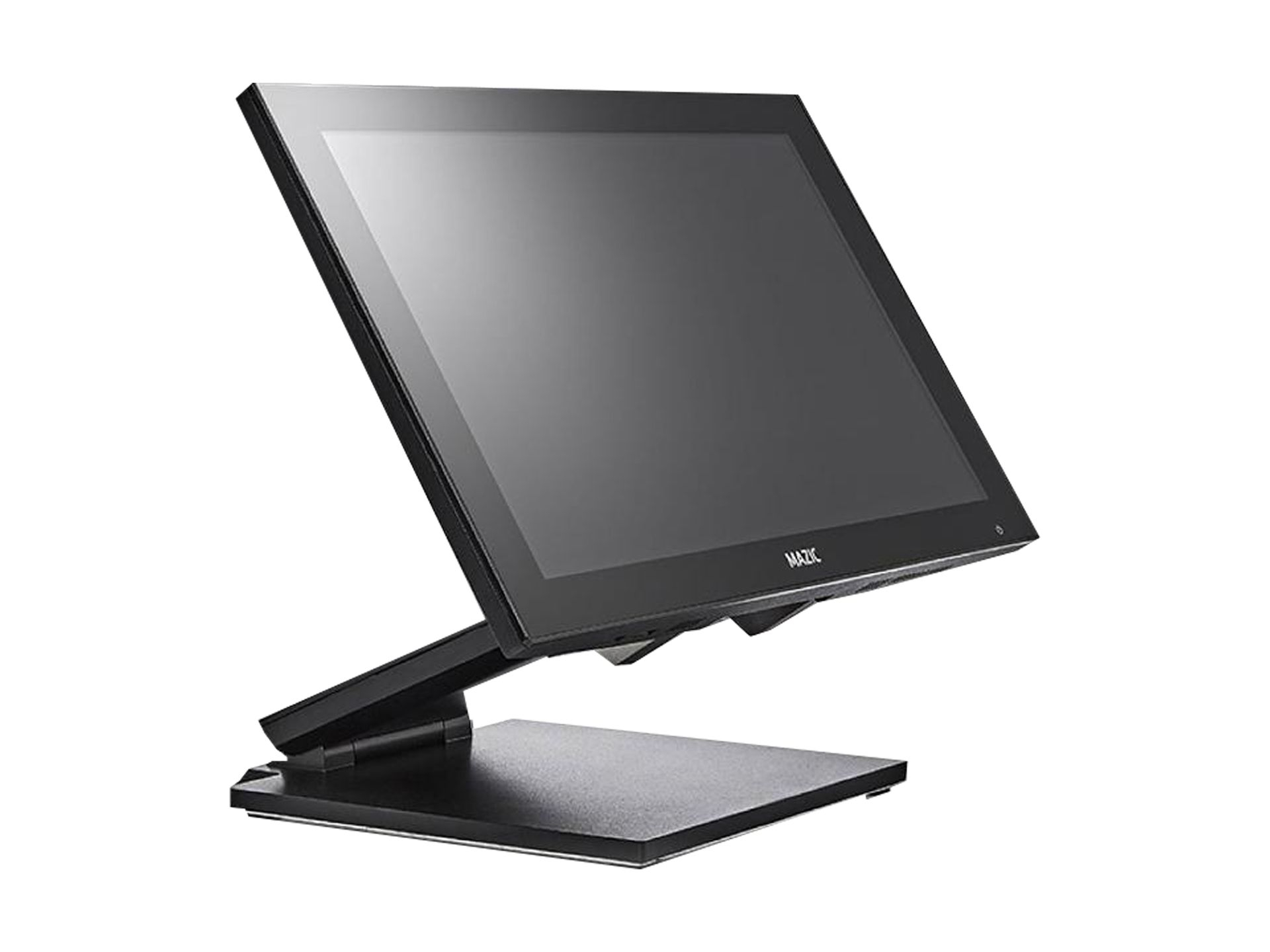

MAZIC™ G-1500

-----

Introducing the all-new high-end POS MAZIC that entirely refined point of sale system. The MAZIC G-1500 adapts simplified and modernized design with 15” touchscreen. MAZIC G-1500 will elevate the style of the place where it is installed.

Read more

REFINED HIGH-END POWER HOUSE





Jam-packed Aluminum Die-casting Heavy duty Design

Elegant & Robust Dual Hinge (Foldable)

Improved product reliability with high-qualified circuit elements

Splash-proof Protection (Front)

Swappable System Box (Various Requirement/Easy After Service)

Complete FAN Free System innovative heat pipe design (Fanless)

Adjustable Height & Viewing Angle

Modernized external I/O Box for I/O extension

Display

----------------------------------------------------------------------------------------------------------------------------------

The true-flat bezel-free touch display of the MAZIC G-1500 is designed for enhanced performance, durability and usability. On its PCAP touch display, the MAZIC G-1500 delivers intuitive and familiar experiences similar to tablets providing less training time for staff. Industrial-grade LED panel offers bright and crisp images, extended product life and energy efficiency.

  • 15" TFT LCD PCAP touch
  • 300 cd/㎡(typ.) Brightness LED Backlight
  • 1024 x 768 Resolution
  • 7H Hardness Glass on PCAP Touch
  •  4:3 Ratio Touchscreen
  •  30,000 MTBF over 30,000 Hours

PROCESSOR

Excellence in Performance

----------------------------------------------------------------------------------------------------------------------------------

The MAZIC G-1500 is compact in size yet powerful in performance. Powered by Intel®’s latest high-performance processors, the MAZIC G-1500 delivers powerful performance and reliable operation enough to run today’s demanding POS applications. It can serve customers faster at increased speed with efficiency while improving the customer checkout experience.


Ruggedized Design

Jam-packed Aluminum Die-casting Heavy duty Design

----------------------------------------------------------------------------------------------------------------------------------

MAZIC applied 7H Hardness Glass with P-Cap Touch which will provides maximized touchscreen durablity. Jam-packed Aluminum Die-casting Heavy duty Cabinet ensures system reliability from unexpected external impacts. In addition, MAZIC provides best in class brightness on screen 300 cd/㎡ luminance.

Swappable System Box

 (Various Requirement/Easy After Service)

----------------------------------------------------------------------------------------------------------------------------------

MAZIC’s impressive feature is the swappable system box. It offers easy system upgrade and maintenance. MAZIC can be upgraded or repaired immediately by replacing the system box. Through the MAZIC’s Unique System box, users can save unnecessary purchase cost to upgrade or time and logistics cost.

  • Easy upgrade of CPU, Memory, Storage and Main board
  • Minimized packing size enables saving logistics cost
  •  Efficient stock management and after-sales service
  • Reduce RMA cost and time
  • Maximize System heat management efficiency by the external cooling system

Dual Hinge

Adjustable Height & Viewing Angle, Elegant & Robust Dual Hinge

----------------------------------------------------------------------------------------------------------------------------------

MAZIC’s signature design is Dual Hinge which enables MAZIC to fold it as flat. MAZIC’s innovative dual hinge structure makes suitable usage for everyone to work with by easily adjusting the height and viewing angle of the system while the modern design and outstanding presence goes well with any retail and hospitality settings. In addition, MAZIC’s minimized packaging size offers reduced logistics and storage cost.

  • Maximized flexibility with adjustable Height and Viewing Angle
  • Saving Logistics and Storage Cost with minimazd Package size
  • Contemporary product design

Heat Management System

Complete FAN Free with innovative heat pipe design (Fan-less)

----------------------------------------------------------------------------------------------------------------------------------

Our engineers designed extraordinary heat management system on MAZIC to maximize heat management effciency and reduce product size. The heat pipe instantly absorbs heat from the system box, and the transferred heat is managed through a copper heat pipe and a aluminum rear cabinet with high thermal conductivity. Thanks to outstanding heat management system of MAZIC, the fan is superfluous. MAZIC has accomplished fanless system without any performance degradation even in harsh operating condition.



Connectivity

USB C Port (x 2)  | USB 3.0 Port (x 2) | USB 2.0 Port (x 2)  | RJ-11 Cash Drawer x (1)  | RJ-45 Gigabit Ethernet x (1)  | Audio Out (x 1)

Peripherals & Options

----------------------------------------------------------------------------------------------------------------------------------

  • 2nd Display 9.7" (1024 x 768) / 13.3" (1920 x 1080)
  • Pogo Pin Type Connector MCR / SCR / Fingerprint Reader / i-Button
  • CDP VFD 20 Cloumns / 2 Lines
  • Memory (upto 32GB) Wifi / Bluetooth

Expansion

Modernized external I / O Box for I / O extension

----------------------------------------------------------------------------------------------------------------------------------

MAZIC offers an external I/O box to expand the POS system.

  • 1 x 24V Powered USB
  •  1 x 12V Powered USB
  • 4 x COM Port (DB9 x 2, RJ45 x 2)
  •  2 x USB 3.0
  • 4 x USB
  • 2.0 1 x Ethernet (USB to Ethernet)
  • 1 x DK RJ11 (Cash drawer)
  •  1 x USB C with fixing point: To system box of MAZIC
  • 1 x USB C: To system box of MAZIC
  • 1 x HDMI

Applications

MAZIC can be applied and Installed in diverse ways.
